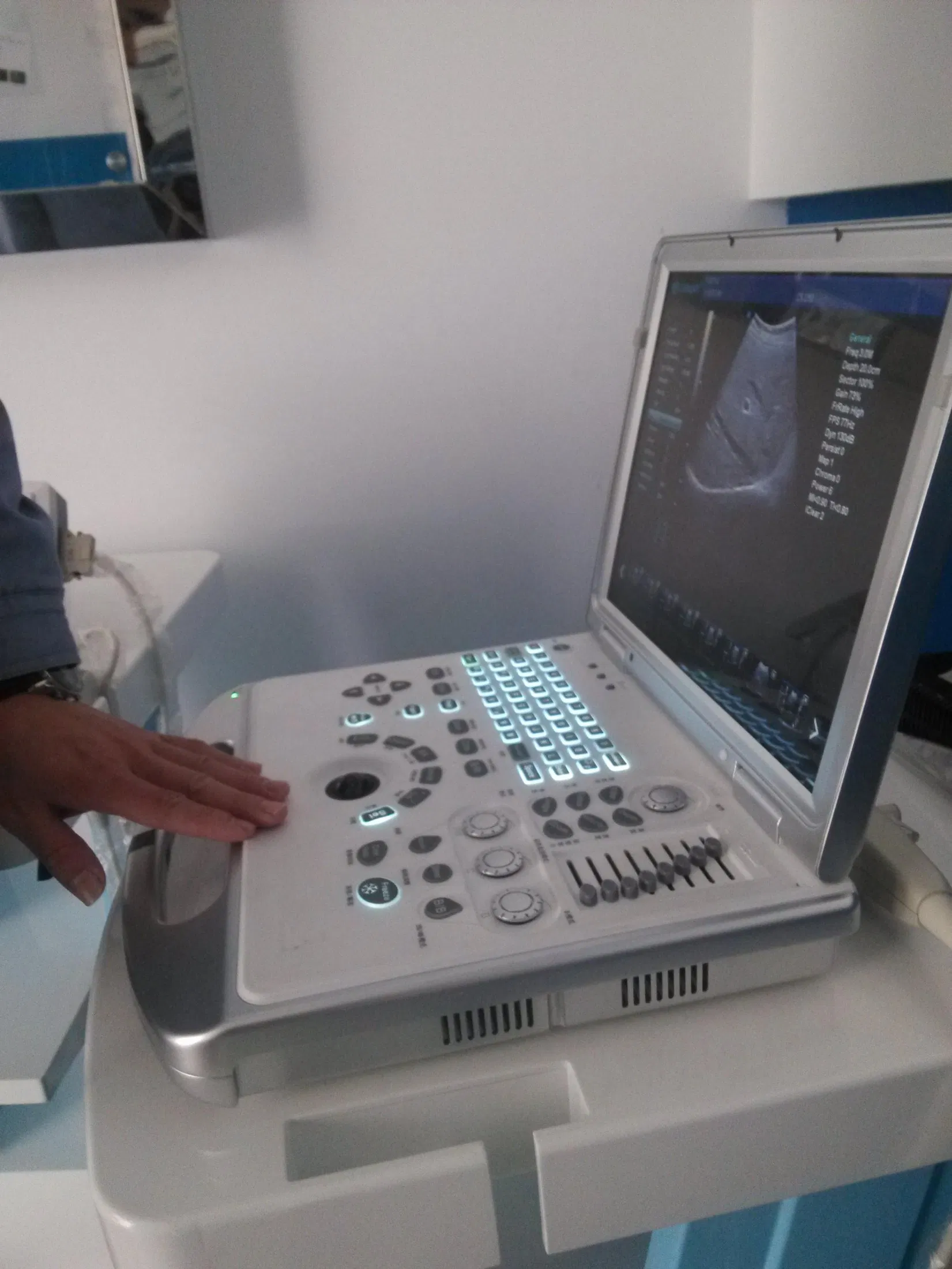

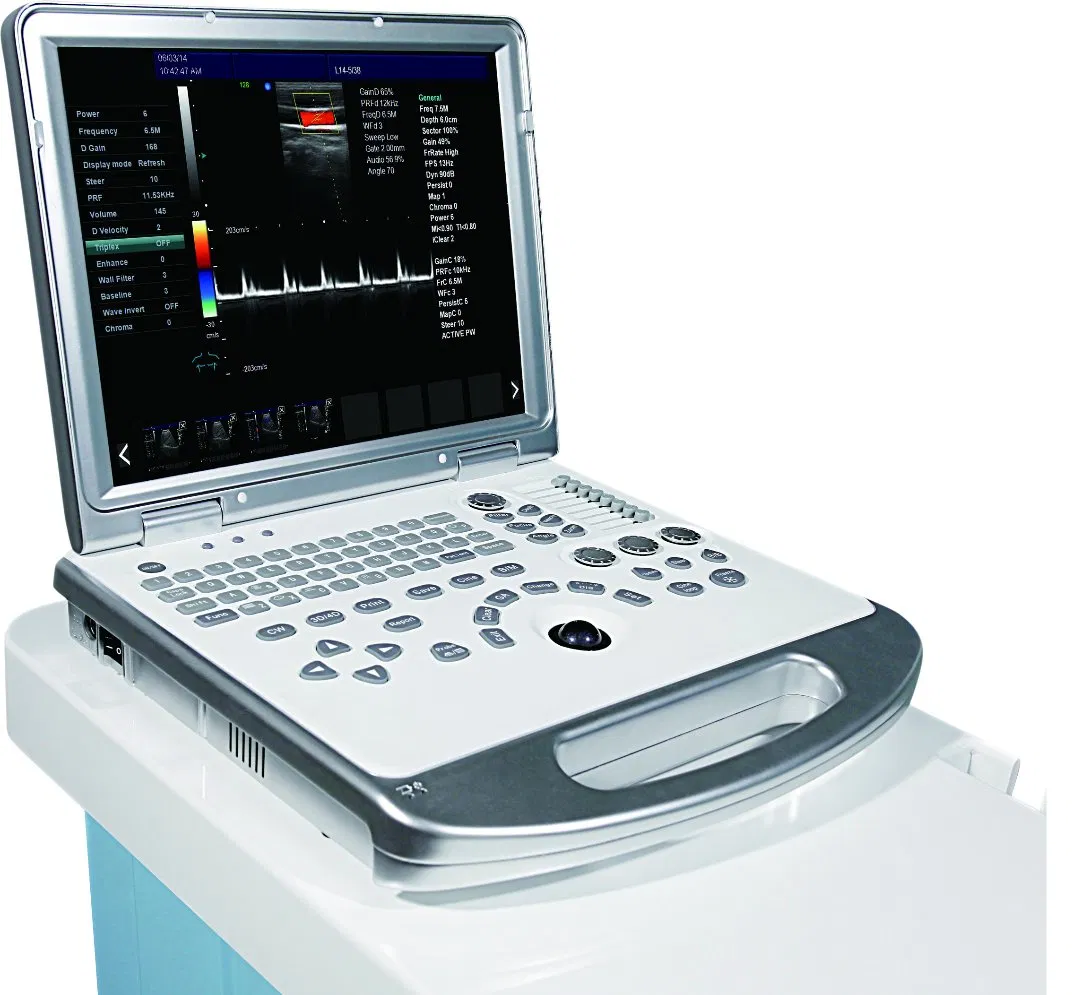

PL-C60plus 4D mobile ultrasound scanner, color doppler
With high precision digital beam forming and Doppler ultrasonic imaging technology, Pro incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image. Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accuracy and analysis efficiency.
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc.
B, 2B, 4B, left&right, B|M, B|D, PW, M, B mode, part zoom, B|C|D, B|C|M, B|C, duplex, PW, CFM, CPA
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing
THI, speckle-reduction, color coder, frame averaging, micro-angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram
M mode: cardiac rate, time, distance, speed.
GYN (four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
Probe parameter, image, cine loop, measurement data and report
Operated by automatically and manually, speed optional, searching cine loop, forward/ backward cine loop
VGA, network, USB, VIDEO, parallel communication port, serial communication port
Main unit, 3.5MHz Multi-frequency convex probe (2.0, 3.0, 3.5, 4.0, 5.5MHz), 15" LED monitor, USB port, DICOM3.0
| High frequency linear probe | 128 elements R40 wideband | Multi-frequency 6.0, 6.5, 7.5, 10, 12MHz |
| Trans-vaginal probe | 128 elements R10 wideband | Multi-frequency 5.0, 6.0, 6.5, 7.5, 9.0MHZ |
| Phased array probe | 64 elements R20 wideband | Multi-frequency 2.0, 2.1, 3.5, 4.0, 5.0 MHz |
Our Minimum Order Quantity (MOQ) is generally 1 unit. The exception however is that for certain items (e.g. wires, gloves or tubing) the MOQ may vary. Feel free to contact us to get an exact MOQ for your product.
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer, L/C and Western Union. Please get in touch with one of our sales managers to check if your payment option is acceptable.
Once we have confirmation of your order & payment, we normally ship within 15 working days.
Most of our products are CE, ISO and RoHS certified.
Yes, barring a few exceptions. Please check with our sales team before applying.
We typically offer 12 months warranties for all our products, except some accessories which may have shorter warranty periods. Please check with our sales managers for the specific warranty period of your product.
